Good Quality Leather Hydraulic Fabric Swing Arm Cutting Machine Hydraulic Press

Overview

Basic Info.

Model NO.	YL41-100T
Warranty	24 Months
Nominal Pressure	2000kn
Motor Power	11kw
Maximum Opening Height	1000mm
Work Table	1500*1000mm
Main Cylinder Stroke	600mm
Production	Three Per Minute
Anchor Tray Dimensions	150*150mm
The Thickness of The Steel Plate	4mm-15mm
Machine Size	800*600*1700mm
Machine Weight	4000kgs
Transport Package	Standard
Specification	20m³
Trademark	baixing
Origin	Shandong
HS Code	8462619090
Production Capacity	200pieces /Year

Product Description

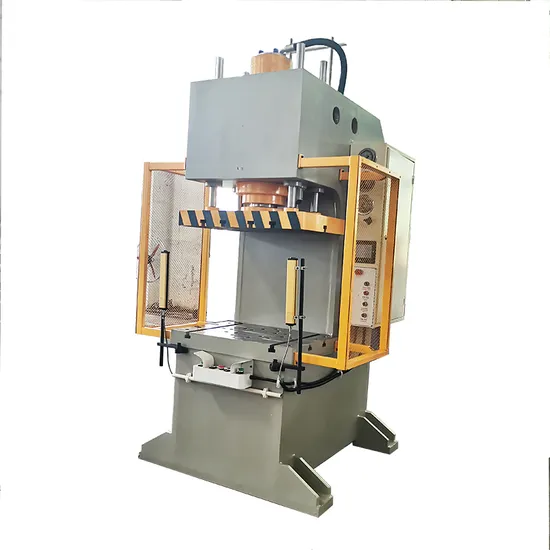

Product DescriptionREAL SHOT:

The single-arm hydraulic press has a C-type structure and is submerged arc welded. After welding, it is treated by vibration to ensure the degree of deformation of the fuselage. The hydraulic system is located inside the fuselage, which is beautiful in appearance and easy to operate.

Features:

1.The machine adopts integral cast steel,with good rigidity and not deformed.2.Accessories are imported and domestic well-known brands.3.With advanced technology,low energy consumption, high speed, low noise and high efficiency.4.Activity crossbeam has safety limiter in both up and down directions.5.Equipped with photoelectric protection device, could guarantee the safety of the operation.6.With the function of automatic and manual, it's convertible.7.Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping andtime-delaying.

Main technical parameters of the equipment

(order number)	(ITEM)		(UNIT)	(NORMS)
1	(Nominal capacity)		KN	1000
2	(The maximum working pressure of the fluid)		MPa	25
3	(Master cylinder effective stroke)		mm	500
4	(Maximum opening height)		mm	800
5	(Effective area ofworking table)	(L/R)	mm	2000
		(F/B)	mm	900
6	(ram speed)	rapid down	mm/s	24
		working speed	mm/s	5-12
		return trip	mm/s	42
7	motor power		KW	22

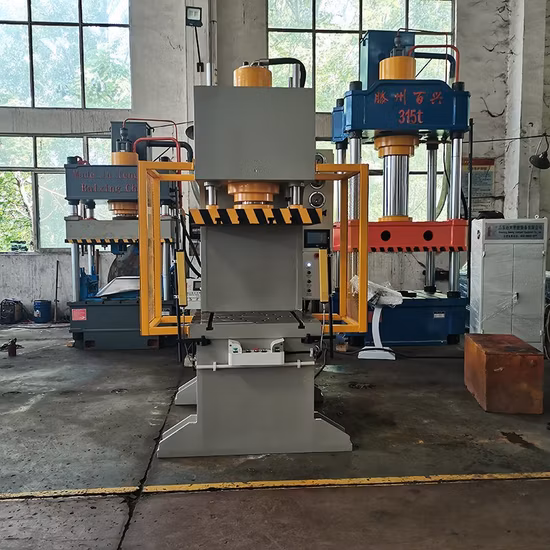

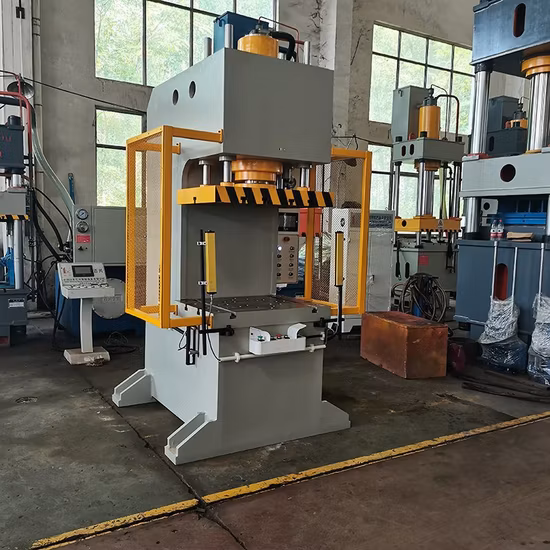

PRODUCT SHOT:

Safety devices:
(1) Stationary and emergency stop button: Press the "Still" button when an error occurs, and the operation stops. Press the "emergency stop" button to stop the operation of the 5-ton single-column hydraulic motor.
(2) The single-column hydraulic motor control part has thermal protector, circuit breaker and other devices to protect the motor from damage and over-current short circuit protection.
(3) Single cylinder hydraulic cylinder master cylinder lower chamber control block is equipped with non-slip drop device and safety valve, the slider can be at any position, to prevent the slider from falling out of control.
(4) Overload protection: The hydraulic circuit of the c frame hydraulic press is equipped with a safety valve. When the hydraulic pressure exceeds the set value, the hydraulic system automatically overflows and restricts pressure, and the set value of protection can be adjusted to ensure that the press will not be overloaded.
(5) Overpressure protection: The electric contact pressure gauge displays the pressure of the upper chamber of the master cylinder at a time, stops working at the set pressure, and effectively plays an overpressure protection function.
Details of the machine:Hot Products
