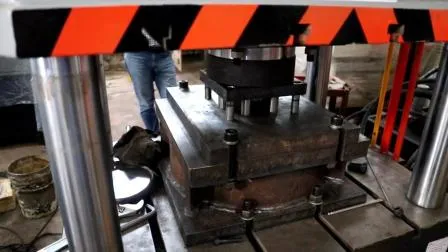

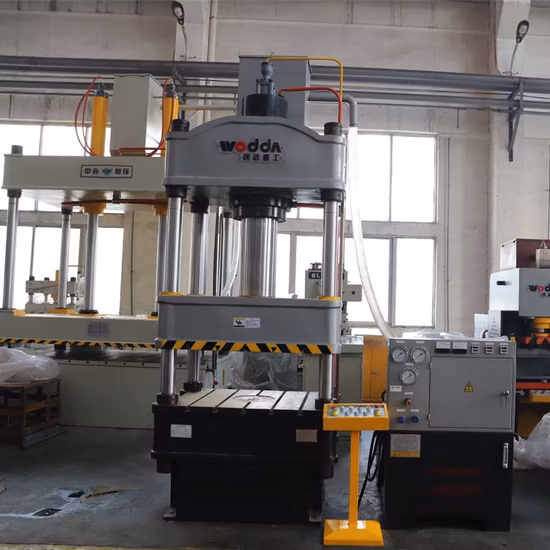

200 Ton Three Beam Four Column Deep Drawing Hydraulic Press

Basic Info.

Model NO.	200 ton
Name	200 Ton Three Beam Four Column Deep Drawing Hydra
Transport Package	Wooden Boxes
Specification	machine size
Trademark	woda
Origin	China

Product Description

200 ton three beam four column deep drawing hydraulic press

Functions:
200 ton three beam four column deep drawing hydraulic press used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.

project	200T-A	200T-AK	200T-AZS	200T-B	200T-BK	200T-BZS	200T-C	200T-CK	200_CZS	200T-TKS
Max liquid working presure(Mpa)	25	25	25	25	25	25	25	25	25	25
Slide stroke(mm)	400	600	600	400	600	600	400	600	600	600
Max openging height(mm)	800	1000	1000	800	1000	1000	800	1000	1000	1000
Worktable size(mm*mm)	660*660	660*660	660*660	800*800	800*800	800*800	1000*1000	1000*1000	1000*100	1260*1200
Descent speed(mm/s)	30	100	190	30	100	190	30	100	190	100
Working speed(mm/s)	8-12	6-12	12-18	8-12	6-12	12-18	8-12	6-12	12-18	6-12
Return speed(mm/s)	20	70	100	20	70	160	20	70	160	100
Motor power(KW)	7.5	7.5	11	7.5	7.5	11	7.5	7.5	11
Displacedment oil pump(ml/r)	40	40	63	40	40	63	40	40	63
Knock-out pressure(t)	35	35	35	50	50	50	50	50	50	50
Stroke of knock-out(mm)	250	250	250	250	250	250	250	250	250	300
